Elastic waistbands for baby diapers manufacturing machine

  • >=1 Sets
    $3,000,000.00
Model Number:
HC-WB
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Samples - $200,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Product Type:
Diaper Machine
Processing Type:
diaper making machine
Power(W):
270kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Online support
Warranty:
one year
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
HI-CREATE
Voltage:
3 phase/380V/50Hz
Dimension(L*W*H):
23*7*2.5 m
Certification:
CE
Production Capacity:
350pcs/min
Model:
HC-WB-FF
Control system:
Frequency Converter Control System
Pass Rate:
≥97%
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case packaging for Elastic waistbands for baby diapers manufacturing machine
Port
Xia men
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Description

Product Application

Elastic waistbands for baby diapers manufacturing machine has the latest technological characteristics, such as suspension core, flanging, etc., with compact structure, stable performance and high degree of automation.The whole machine adopts full servo automatic control.The products are made of hot air composite bottom film, polymer absorbing material SAP, etc.The products are manufactured with the latest three-dimensional suspended hourglass structure.Waist circumference after the big ring is through layers of non-woven fabric composite has several elastic rubber band, the integration processing process, low processing cost, flexibility, can all-around to the diversion of liquid, the thorough diapers main body lining, three-dimensional enclosure to prevent sliding sideways, coated surface there are air holes, strengthen the subject permeability and comfort of diapers.

Main Structural device:

1.Cell mill

2.Suction fan

3.Drum forming unit

4.SAP applying device;

5.Tissue wrapping device;

6.Core compacting device;

7.Core cutting device;

8.Waist band applying device;

9.Elastic ribbon unwinding device;

10.ADL applying device;

11.Cuff embossing device;

12.Front tape applying device;

13.Side-tape applying device;

14.R-cutting device;

15.Final cutting device;

16.Final folding device;

17.Waste rejecting device;

Main Technical parameter :

Model
HC-WB-FS
HC-WB-FF
Electric Power Supply
3 phase/380V/50Hz
Total Power
270kw
Pass Rate
≥97%
Production Speed
400pcs/min
350pcs/min
Outline Dimension(L*W*H)
23*7*2.5 m

Main Features

1.Cell mill;

2.Drum forming;

3.Tension of the tissue paper & spandex controlled by torque control speed;

4.Servo inverter optional governor adopted for main machine drive;

5.Constant tension unwinding system & auto splicer;

6.Rotary bodies adjustable during operation;

7.PLC drive system;

8.Touch screen for man-machine conversation;

9.New mechanism of waist lamination;

10.Whole welded construction for machine frame;

11.Finished products output in line automatically;

12.Safety doors equipped at the operating side.

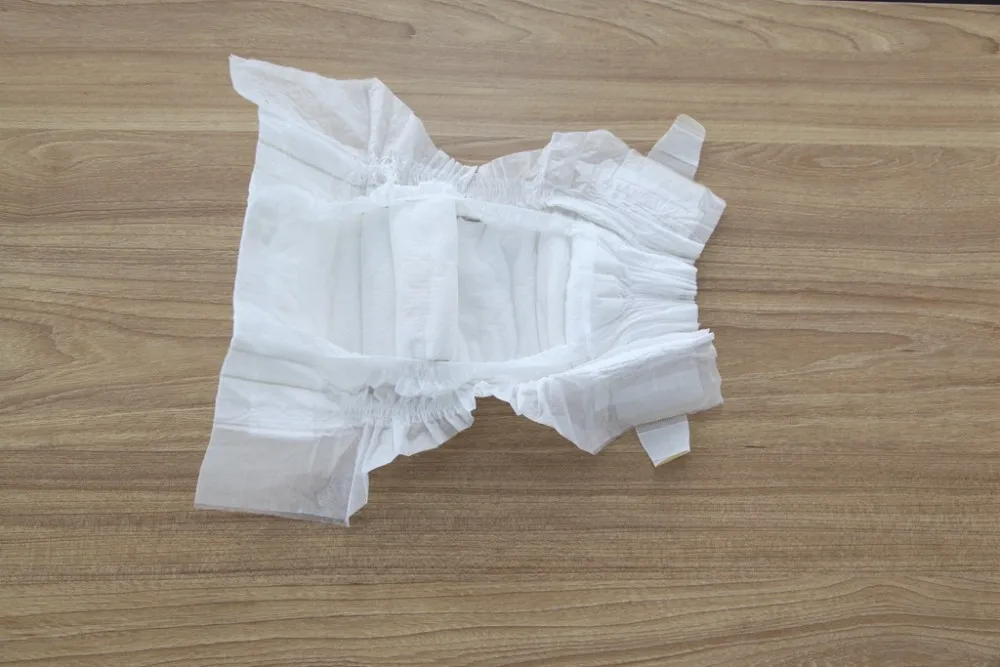

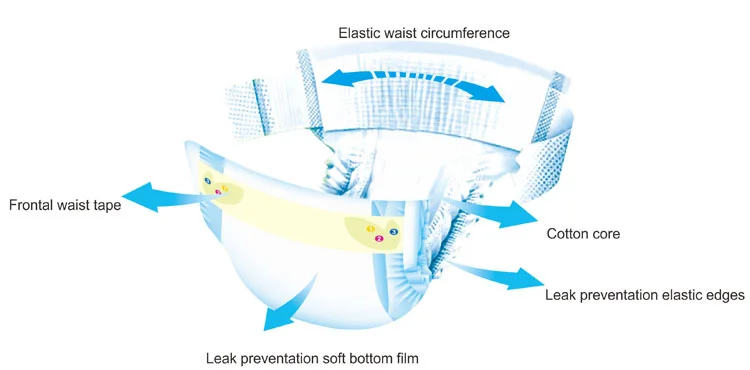

Finished products structure:

Finished products
Related Products

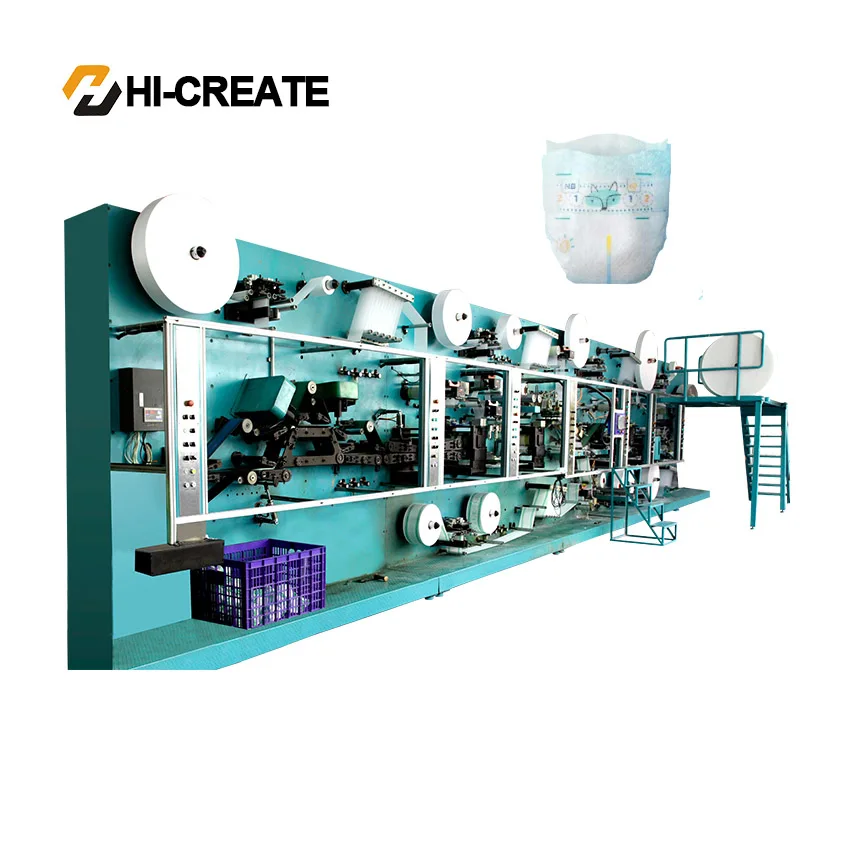

HC-DP

baby diaper machine

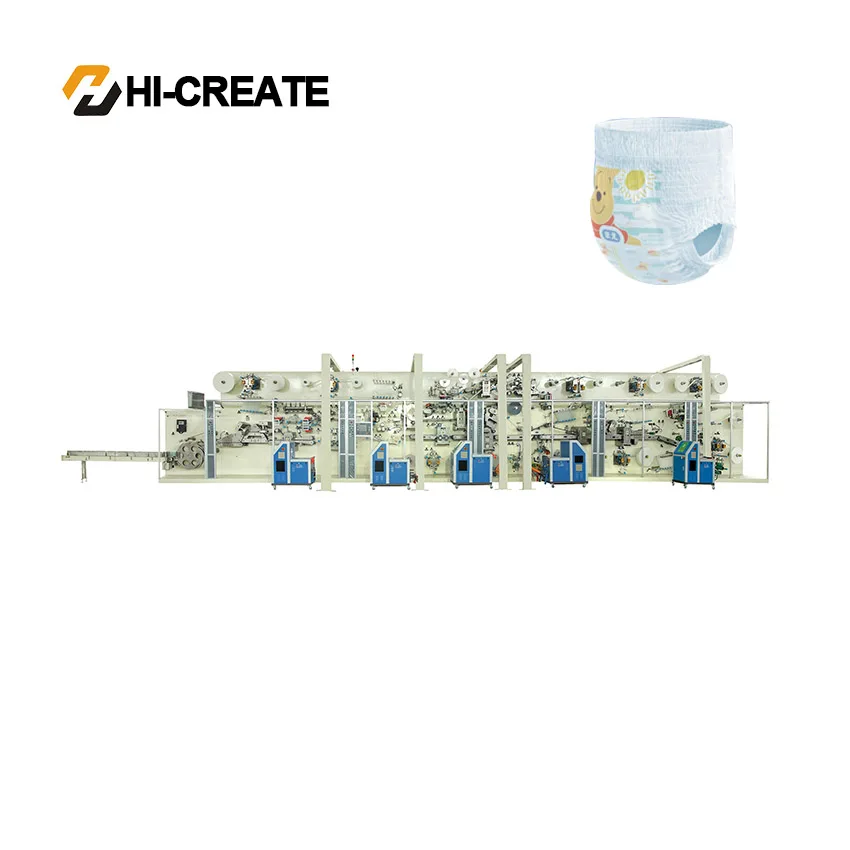

HC-TP

baby pull up diaper making machine

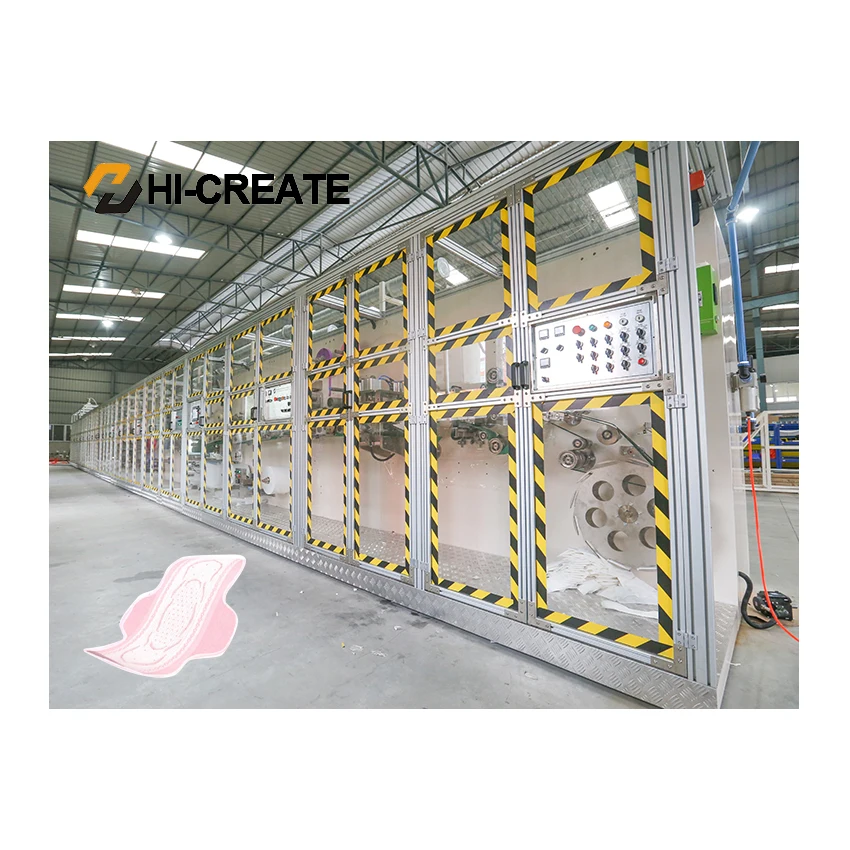

HC-SN

sanitary napkin production line

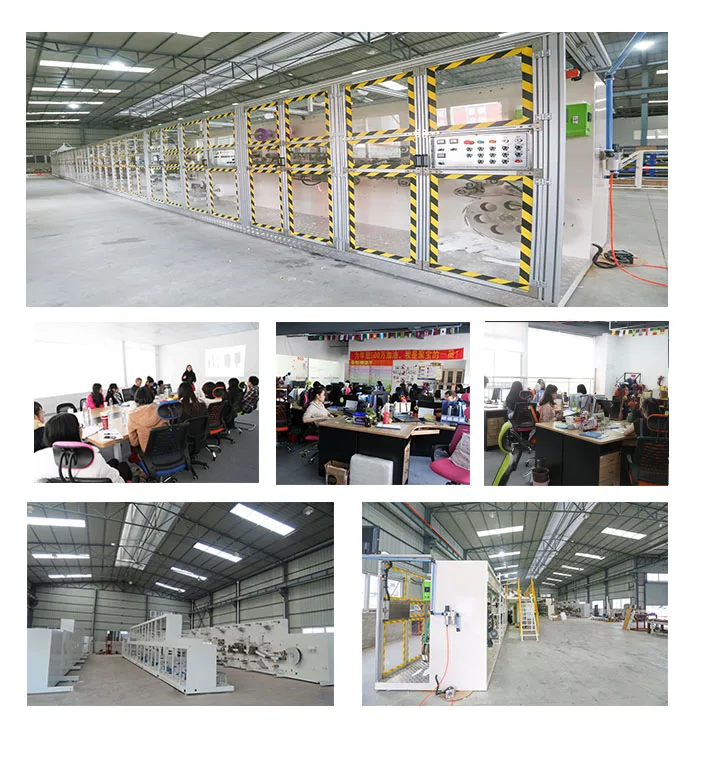

Our Company


HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
