Baby cloth training pants production line

  • >=1 Sets
    $300,000.00
Model Number:
HC-TP
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Samples - $360,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Product Type:
Diaper Machine
Processing Type:
diaper making machine
Power(W):
270kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Online support
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
HI-CREATE
Voltage:
3 phase/380V/50Hz
Dimension(L*W*H):
23*7*2.5 m
Certification:
CE
Production Capacity:
400pcs/min
Model:
HC-TP-FS
Control system:
Frequency Converter Control System
Pass Rate:
≥97%
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
Baby cloth training pants production line is packing by plywood case
Port
Xia men
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Description

Product Application

The waistband is made of thermal bonding device;Raw material uncoiling, constant tension control and automatic material changing and receiving;Detection and alarm of material failure and material shortage, scrap removal of refueling joint.Baby cloth training pants production line is equipped with tension uncoiling system, constant tension control and material storage mechanism, material deviation correction system.This constant tension system ensures stable feeding at full speed, minimizes impact on material tension and reduces downtime.The machine adopts the whole servo drive digital number change, convenient and fast, synchronous belt, flat belt are imported, key parts are imported bearings.The surface layer is composed of two sides of non-woven fabric and the vertical edge formed by elastic and the intermediate fabric by pressing or composition.Non - woven fabric cutting device using motor cutting.

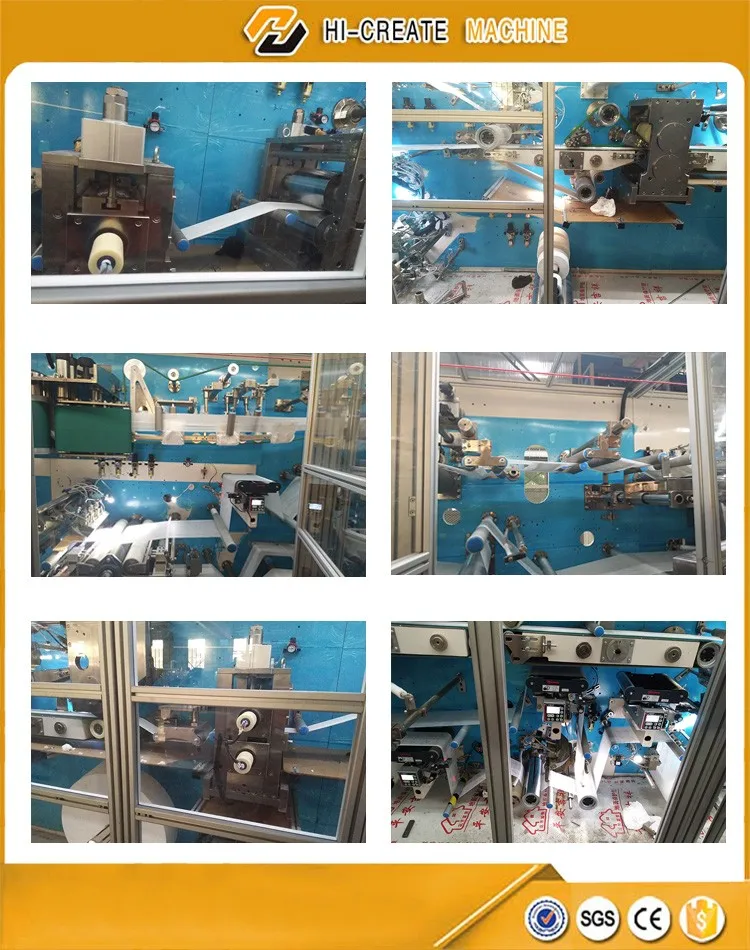

Main Structural device:

1.Pulverizing device;

2.SAP applying device;

3.Drum forming device;

4.Tissue paper wrapping device;

5.Core compacting device;

6.Acquisition layer splitting device;

7.Inner cutting device;

8.Elastic waist applying device;

9.Protective cuff laminating device;

10.Elastic waist applying device;

11.Spandex splitting device;

12.Pinch roll transmit device;

13.Outer cutting device;

14.Waist laminating device;

15.Safty doors;

16.Waste rejecting device;

17.Output & transmit device.

Main Technical parameter:
Model
HC-TP-FS
HC-TP-FF
Electric Power Supply
3 phase/380V/50Hz
Total Power
270kw
Pass Rate
≥97%
Production Speed
400pcs/min
350pcs/min
Outline Dimension(L*W*H)
23*7*2.5 m

Main Features

1.Cell mill;

2.Drum forming;

3.Tension of the tissue paper & spandex controlled by torque control speed;

4.Servo inverter optional governor adopted for main machine drive;

5.Constant tension unwinding system & auto splicer;

6.Rotary bodies adjustable during operation;

7.PLC drive system;

8.Touch screen for man-machine conversation;

9.New mechanism of waist lamination;

10.Whole welded construction for machine frame;

11.Finished products output in line automatically;

12.Safety doors equipped at the operating side.

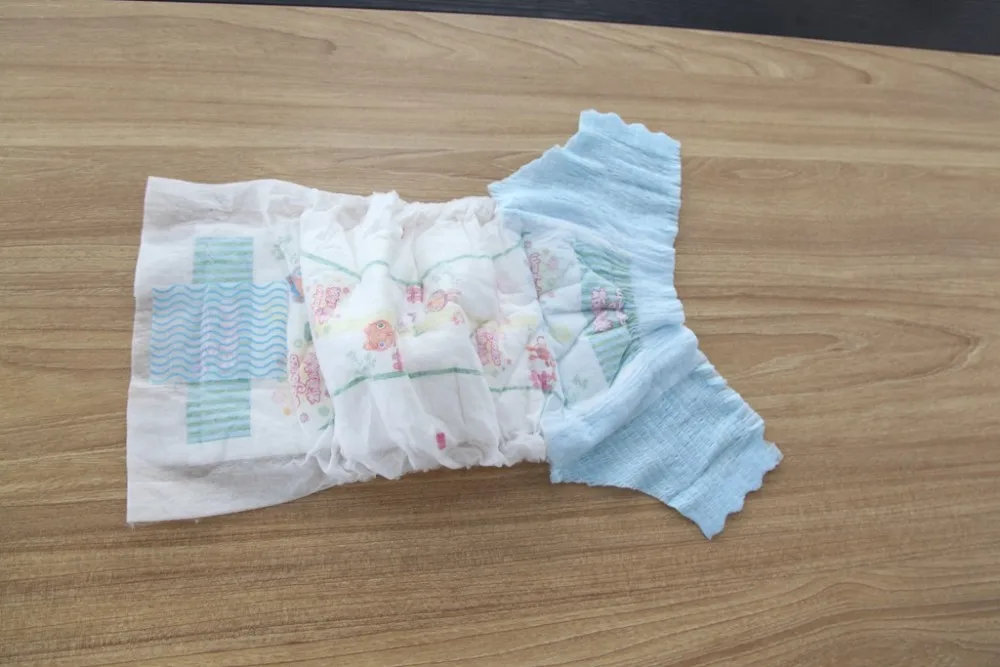

Finished products structure:

Finished products
Related Products

HC-SN

sanitary napkin production line

HC-DP

baby diaper making machine

HC-AD

adult diaper manufacturing machine

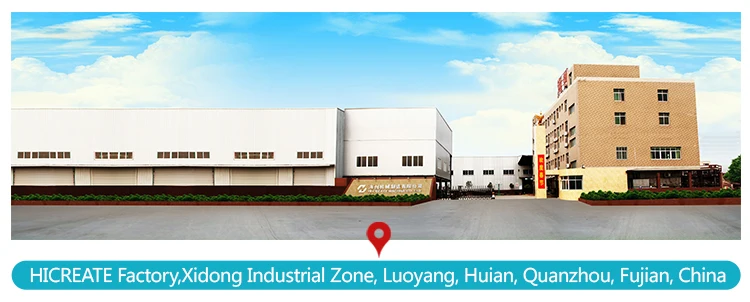

Our Company


HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
