Baby diaper machine price

  • >=1 Sets
    $2,000,000.00
Model Number:
HC-DP
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Samples - $2,300,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Product Type:
Diaper Machine
Processing Type:
diaper making machine
Power(W):
270kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Online support
Warranty:
12 months
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
HI-CREATE
Voltage:
3 phase/380V/50Hz
Dimension(L*W*H):
25*7.8*4 m
Certification:
CE
Production Capacity:
500pcs/min
Model:
HC-DP-FS
Control system:
Frequency Converter Control System
Pass Rate:
≥97%
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case packaging for Baby diaper machine price
Port
Xia men
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Description

Product Application

The speed synchronization and phase synchronization of Baby diaper machine price are all controlled by servo motor + PLC. The main machine is supplied by fiber collector, the thickness can be adjusted at any time, and the waste can be recycled.Lint pulp and absorbent paper package, mesh press and finalize the design, the use of cotton core does not break, do not shift.The three-dimensional protective material is cut in the machine and formed by hot pressing, which can be combined with elastic to form the three-dimensional protective material and prevent side leakage. The whole machine is driven by servo conveyer, the number is changed digitally, and the front waist is attached by servo positioning and cutting to ensure that the pattern is consistent with the phase.

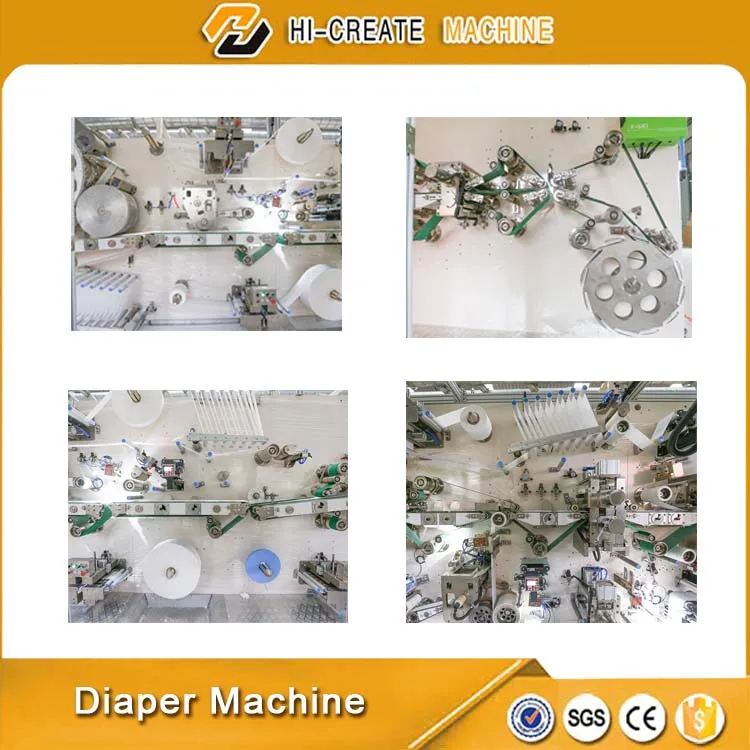

Main Structural device:

1.Cell mill;

2.Suction fan;

3.Drum forming;

4.SAP applying applicator;

5.Tissue wrapping device;

6.Core compacting device;

7.Core cutting device;

8.Elastic waist applying device ;

9.Elastic ribbon unwinding device;

10.ADL applying device;

11.Cuff embossing device;

12.Frontal tape applying device;

13.Side tape applying device;

14.R cutting device;

15.Final cutting device;

16.Final folding device;

17.Waste rejecting device;

18.Safty door;


19.Stacker (to be ordered).

Main Features

1.Touch screen for man-machine conversation;

2.Servo motor inverter optional drive & PLC control system;

3.Cell mill;

4.Drum forming;

5.SAP applicator;

6.Active unwinding, constant tension control and auto splicing are adopted for raw materials;

7.Auto detecting & alarm for material exhausted or omission; auto reject for material joint;

8.Pase can be adjusted during operation;

9.Bi-folding & tri-folding unit;

10.Product auto counting & stacking.

Main Technical parameter :

Model
HC-DP-FS
HC-DP-FF
Electric Power Supply
3 phase/380V/50Hz
Total Power
270kw
Pass Rate
≥97%
Production Speed
500pcs/min
350pcs/min
Outline Dimension(L*W*H)
25*7.8*4 m

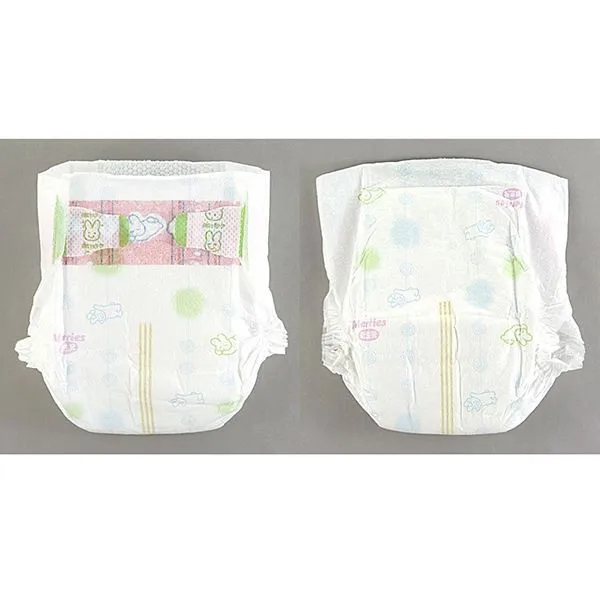

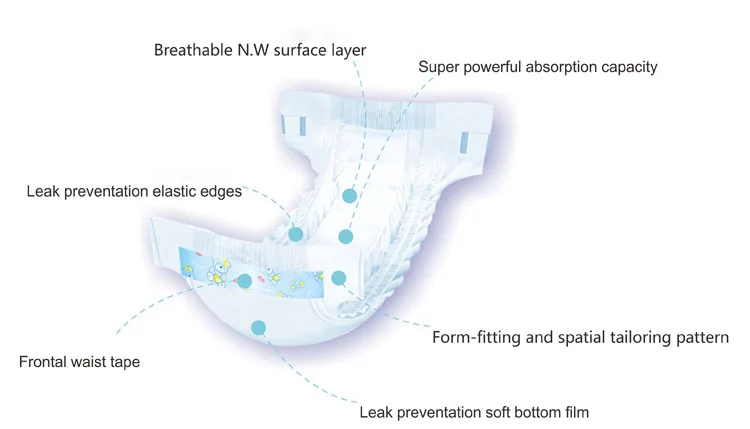

Finished Products structure:

Finished products
Related Products

HC-TP

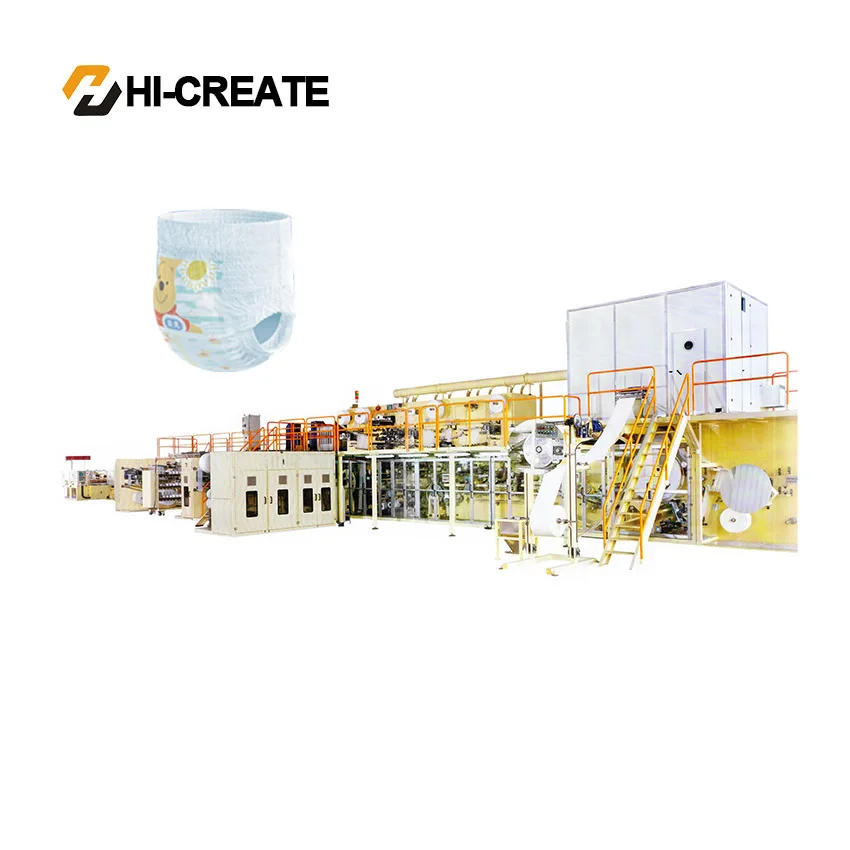

baby pull up diaper machine

HC-SN

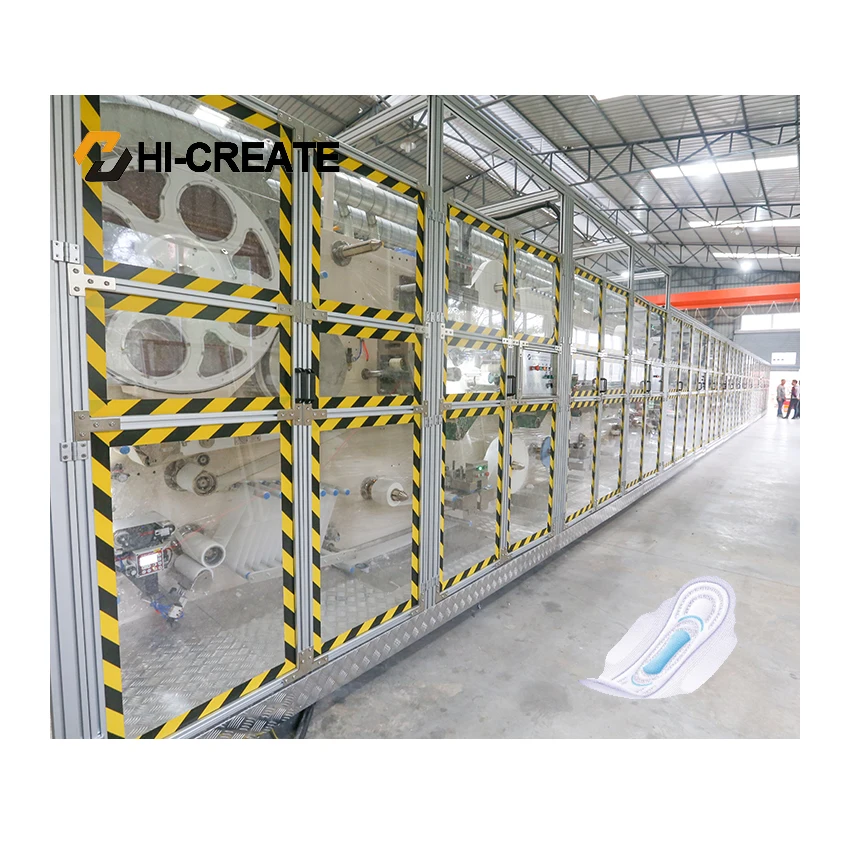

lady sanitary napkin production line

HC-AD

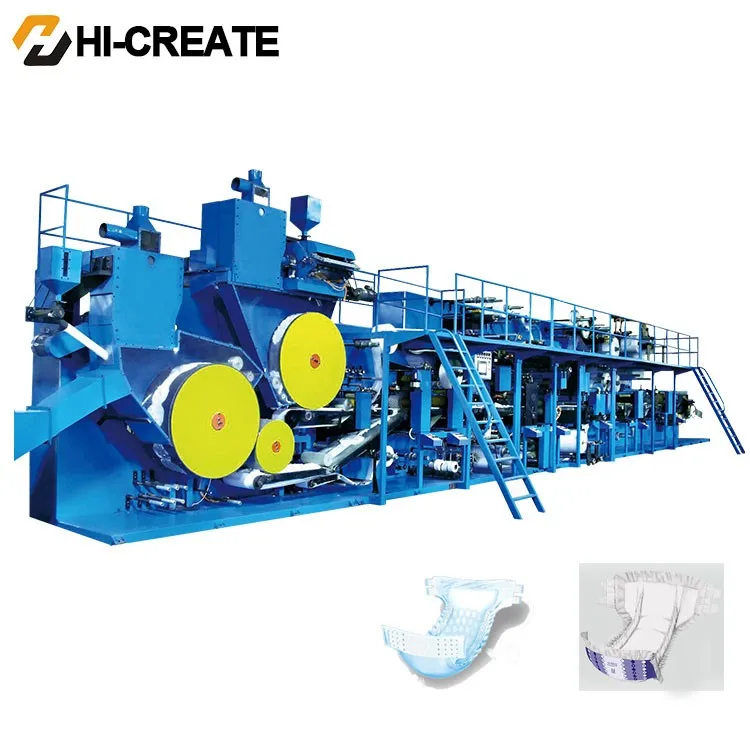

adult diaper making machine

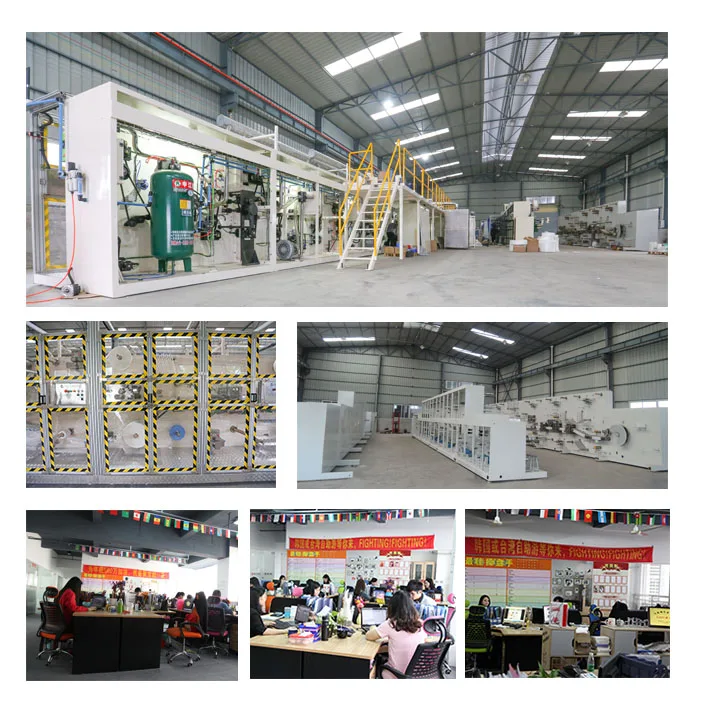

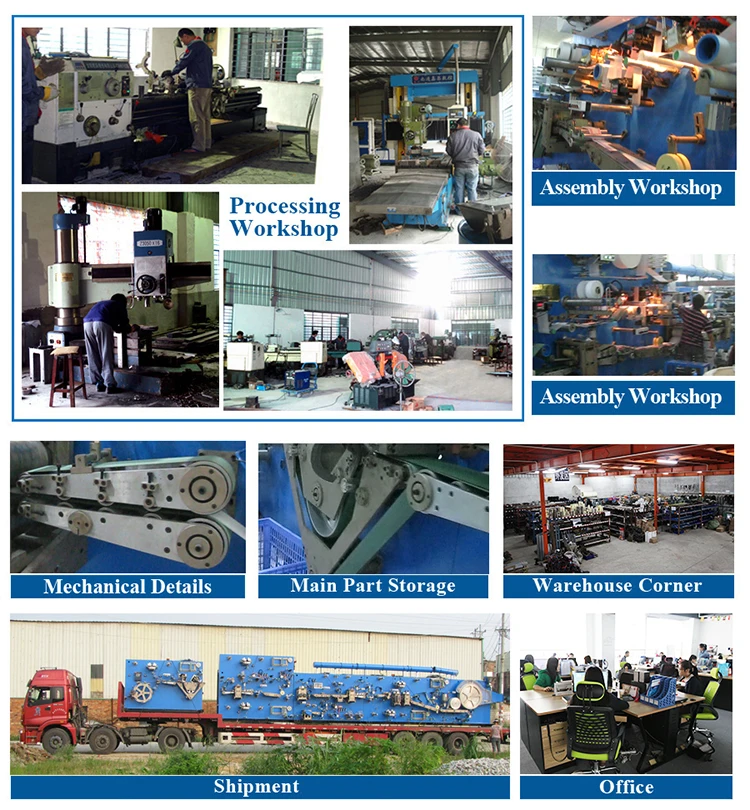

Our Company

HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
