Brand name sanitary napkin production line

  • >=1 Sets
    $300,000.00
Model Number:
HC-SN
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Samples - $320,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Product Type:
Sanitary Napkin Machine
Processing Type:
sanitary napkin making machine
Power(W):
280 kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Online support
Warranty:
12 months
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
HI-CREATE
Voltage:
3 Phase/380V/50Hz
Dimension(L*W*H):
20*2.5*2 m
Certification:
CE
Production Capacity:
600-800pcs/min
Model:
HC-SN-FS
Pass Rate:
≥97%
Control system:
Frequency Converter Control System
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case packaging for Brand name sanitary napkin production line
Port
Xia men
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Description

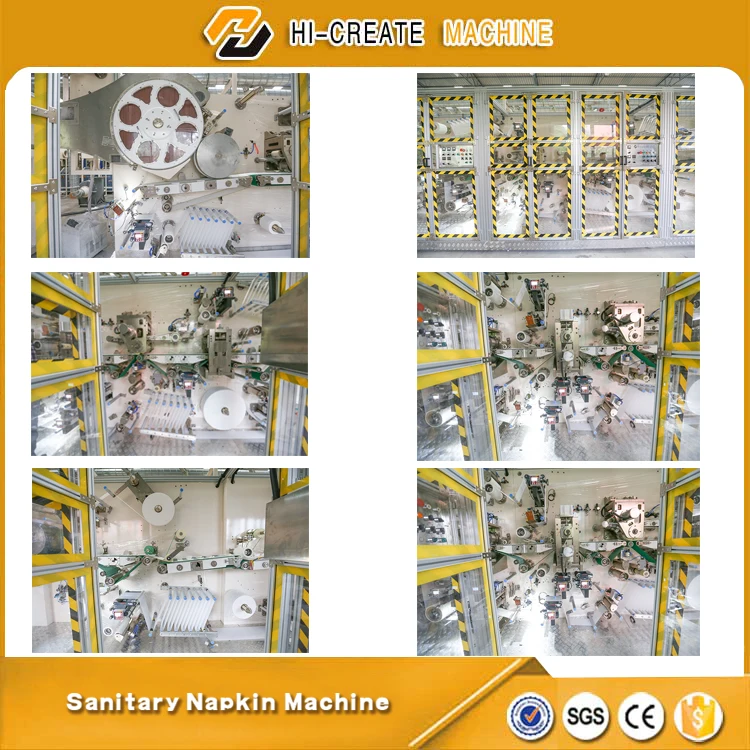

Product Application

Brand name sanitary napkin production line adopts double knife, double mould, double diversion, one machine is used instead of two machines, it can produce products of two length specifications.Pneumatic device is used to adjust the tool, die and flow guide groove, which can prolong the service life of the tool die and flow guide groove.Adopt gear shift double shaft transmission when changing specification, save time and improve working efficiency.Pneumatic switch is used to change gear, easy to change gear, electric differential is convenient to adjust the synchronism of equipment.This machine adopts the mixed transmission mode of synchronous wheel and synchronous belt combined with universal joint, which not only gives consideration to the smooth transmission, but also reduces the noise, the operation is simple and convenient.

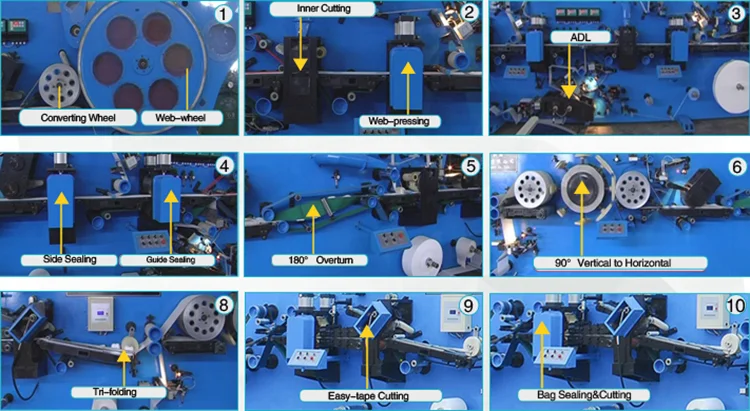

Main Structural device:

1.Cell mill;

2.Suction fan;

3.Drum forming unit;

4.SAP applicator;

5.Absorbent layer compacting unit;

6.Side gather embossing unit;

7.ADL splitting and dotting unit;

8.Embossing unit;

9.Release paper splitting unit;

10.Contour cutting unit;

11.Rotating and Wing folding unit;

12.90 degree revolving unit;

13.Sachet wrapping unit;

14.Adhesive tape splitting unit;

15.Thermo sealing and cutting unit;

16.Waste rejecting unit;

17.Safety door.

Main Features

1.Touch screen for man-machine conversation;

2.Main motor drive & PLC control;

3.Cell mill;

4.Drum forming;

5.SAP applicator;

6.ADL short cut unit;

7.Servo inverter optional governor motor drive unwinder, tension control and splicing for raw material;

8.Current conducting ring is adopted for the heating rotary bodies;

9.Phase can be adjusted during operation;

10.Product auto counting.

Main Technical parameter:
Model
HC-SN-FS
HC-SN-FF
Electric Power Supply
3 Phase/380V/50Hz
Total Power
280kw
Pass Rate
≥97%
Production Speed
600-800pcs/min
400-600pcs/min
Outline Dimension(L*W*H)
20*2.5*2 m

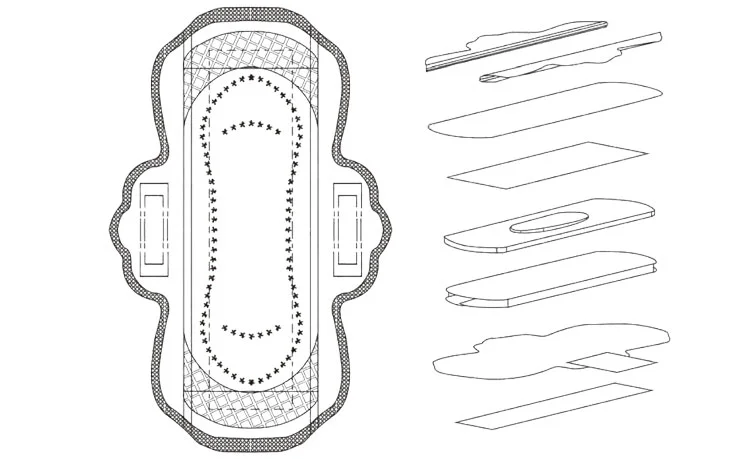

Finished product structure:

Finished products
Related Products

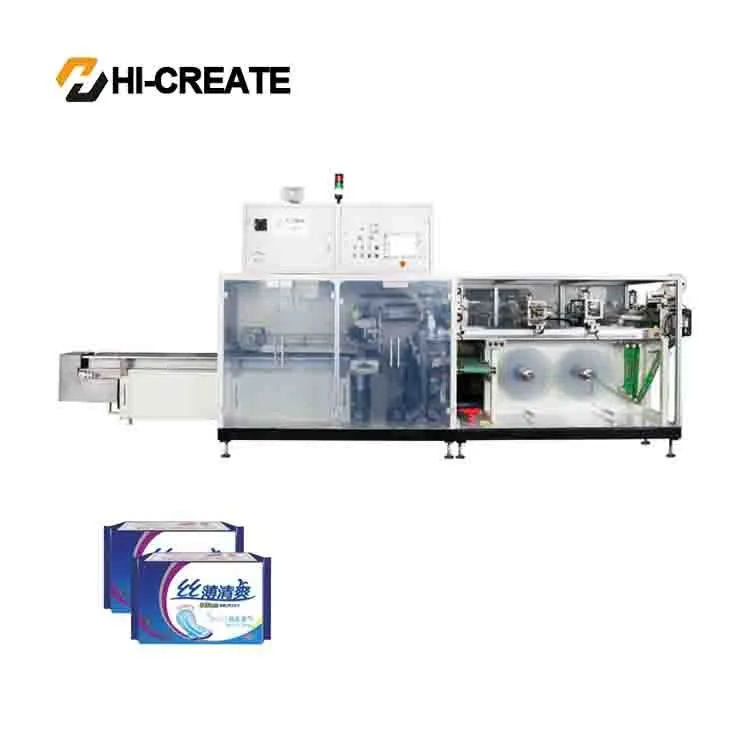

HC-SS

sanitary napkin packing machine

HC-DP

baby diaper making machine

HC-AD

adult diaper manufacturing machine

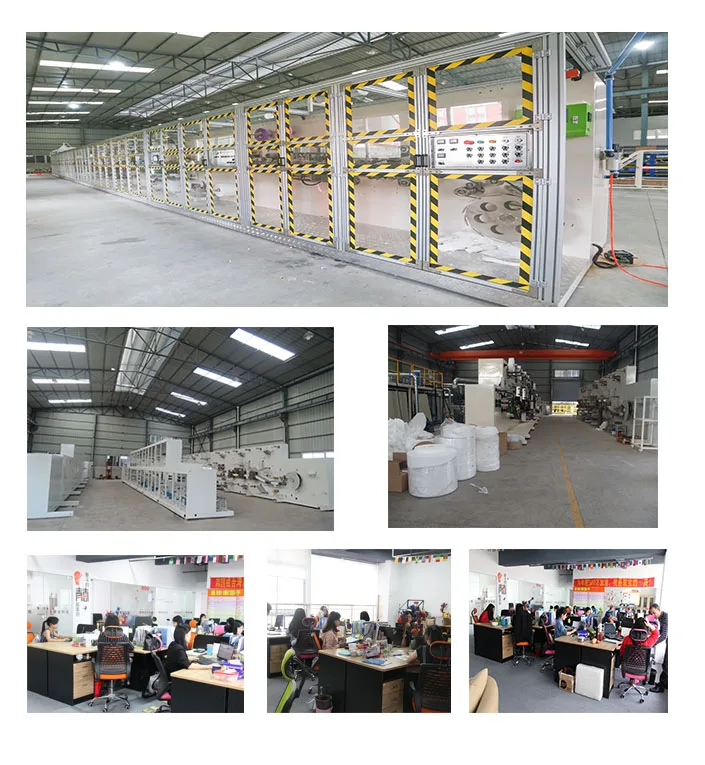

Our Company


HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.

Our Service
Certifications
Packing & Delivery
Contact us

-Sophy:+8615059777755           -Sandy:+8617750102010           -Phil:+8618750557705

-Iven:   +8618750590775           -Zoe:    +8618750558682
