High speed women sanitary pad packing machine

FOB Reference Price:Get Latest Price
$80,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HC-SS
Lead Time:
Quantity(Sets) 1 - 4 >4
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
sanitary napkin
Packaging Material:
Plastic, Paper
Type:
Other
Condition:
New
Packaging Type:
Cartons, Bags
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V 50HZ
Power:
18KVA
Place of Origin:
Fujian, China
Brand Name:
HI-CREATE
Weight:
2500 kg
Dimension(L*W*H):
6*1.3*2.35 m
Certification:
CE certification
Working speed:
60bags/min
Control system:
PLC
Finished product rate:
≥98%
Number of pieces per row:
6-30pcs/row
Finished bags dimensions(W*H*L):
Min. 60*50*90mm, Max. 100*100*240 mm
Tube film bag(PE) thickness:
50-70μm
Air Supply:
0.65-0.85Mpa
Standard process direction:
Left-hand process,Right-hand process direction available upon request.
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
High speed women sanitary pad packing machine is packing by plywood case
Port
Xia men
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 4 >4
Est. Time(days) 60 To be negotiated
Product Description

Product Application

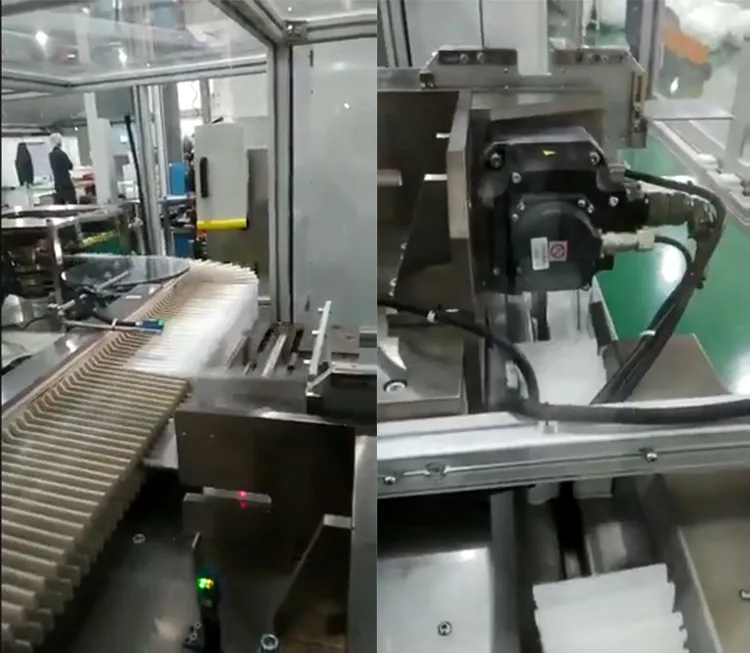

Women sanitary pad packing machine is mainly used in sanitary napkin packaging.Servo motor drive, stable operation and fast packaging speed.Greatly reduce process labor, the use of production process integration, to achieve the advantages of semi-automatic packaging machine speed.Online bag making, more environmentally friendly, more widely used.The same equipment can be packaged a variety of specifications of products, simple operation and more stable performance.

Main Features

1.Fully servo driven,Servo motor management by electronic CAM

2.Force restrict protection, stable running

3.Modular structure design

4.Bag production Online, color sensor positioning

5.Mould replacement specification,Easy operation

6.Can be used for insertion and Laminated

Main Technical parameter:

Model
HC-SS
Working speed
60bags/min
Finished product rate
≥98%
Number of pieces per row
6-30pcs/row
Finished bags dimensions(W*H*L)
Min. 60*50*90mm, Max. 100*100*240 mm
Tube film bag(PE) thickness
50-70μm
General dimensions(L*W*H)
6*1.3*2.35 m
Total weight
2.5Ton
Electrical Power consumption
18KVA
Air Supply
0.65-0.85Mpa
Standard process direction
Left-hand process,Right-hand process direction available upon request.
Finished products
Related Products

HC-PL

panty liner production line

HC-SN

sanitary napkin making machine

HC-SK

sanitary pad stacking equipment

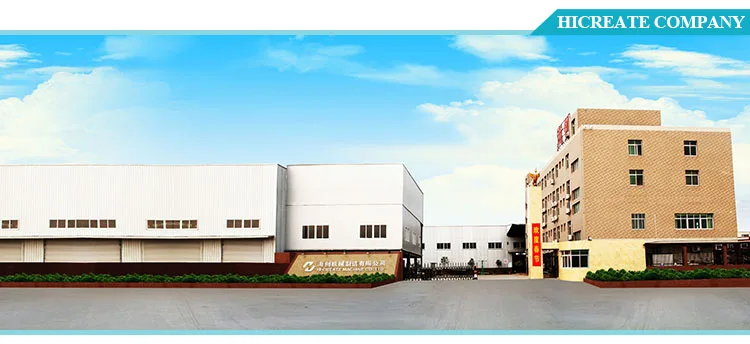

Our Company

HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
